DM6B Four Casters Veterinary Anesthesia Scavenger System 0-60L/Min

Alarm : High/Low Pressure, High/Low Tidal Volume, High/Low Respiratory Rate, Apnea

Display : LCD

Flow Range : 0-60L/min

Function : Anesthesia

Interface : USB/RS232

Name : Veterinary Anesthesia Ventilator

Oxygen Concentration : 21%-100%

Power : AC/DC

Pressure Range : 0-60cmH2O

Respiratory Rate Range : 4-60bpm

Tidal Volume Range : 50-1500ml

Type : Ventilator

Voltage : 110V-240V

Weight : 3.5kg

Contact Now

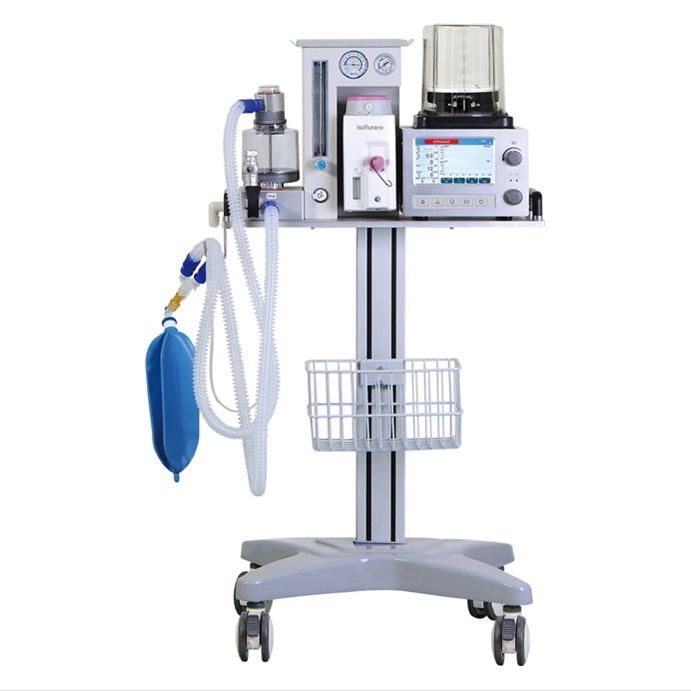

DM6B Veterinary Anesthesia System

Trust point

Equipped with four casters, including two individual brakes for enhanced mobility and stability.
Centered ventilation system ensures precise and reliable performance in delivering anesthesia.
Offers multiple ventilation modes, including IPPV, A/C, SIMV, SIGH, and MANUAL, providing versatility in anesthesia management.
Features a compact interface and a 7" TFT LCD screen, offering an improved operating experience for users.
Flexible configurations allow customization to meet specific requirements.
Incorporates international standards and advanced technology, making it suitable for a wide range of veterinary applications.
Trusted worldwide, with over 5,000 units installed in more than 200 countries.
Designed and manufactured by Superstar Medical, leveraging over 14 years of experience in the veterinary field.

Safety

Three level alarm system, visual and sound alarm information.
With lots of alarm, reminder and protection functions.
Advanced power management control technology.
Built-in backup battery provide the emergency power supply up to 2-3 hours for the unit.

Advantage

7" screen displays information area, alarm area, monitoring area, and setting area.
High precision mechanical flowmeter, instantly know the fresh gas flow to animals.
Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
Real time pressure-time, flow-time oscillogram
Manual and mechanical ventilation for safer operation.
External sensor design makes parameters setting more accurate.
Wide use range for animals within 200KG.
Anesthesia Gas Scavenging System (AGSS) are optional.

Application

The DM6B Veterinary Anesthesia System is a highly regarded solution that finds wide application in veterinary clinics, hospitals, and laboratories worldwide. It has gained a strong reputation among clients for its exceptional performance and reliability.
Specifically designed for safe and precise inhalation anesthesia in animals, the DM6B model offers a user-friendly interface and advanced features. It allows for efficient and accurate control of anesthetic depth, accommodating a wide range of animals, from small rodents like mice and rabbits to larger animals such as dogs, cats, and birds.
With its ability to adapt to various cases, from simple to complex procedures, the Veterinary Anesthesia System ensures smooth and controlled anesthesia administration. It provides minimal resistance to respiration, enabling animals to maintain a stable breathing pattern throughout the anesthesia process.
The DM6B Veterinary Anesthesia System has become an indispensable tool in the veterinary field, providing veterinarians and researchers with a reliable and efficient solution for safe and effective anesthesia management in diverse animal species.

Ventilation mode

IPPV, A/C, SIMV, SIGH, MANUAL

Ventilator parameter range
Flowmeter	O2 (0～5L/min)
Rapid Oxygen Supply	25L/min～75L/min
Tidal Volume (Vt)	0, 20 mL ～ 1500 mL
Frequency (Freq)	1/min～100/min
I:E Ratio	2:1～1:6
Pressure Triggering Sensitivity	-20 cmH2O～0 cmH2O (Based on PEEP)
Flow Trigger Sensitivity	0.5 L/min ～ 30 L/min
SIGH	0 (off) 1/100 ～ 5/100
Apnea Ventilation	OFF,5 s ～ 60 s
Pressure Limit	20 cmH2O ～ 100 cmH2O

Alarm and protection
The AC power failure alarm	Power failure or no connection
Low voltage alarm for back up battery	＜11.3±0.3V
No tidal volume	≤5mL within 6s
High oxygen concentration alarm	19%-100%
Low oxygen concentration alarm	18%-99%
High airway pressure alarm	20cmH2O-100cmH2
Low airway pressure alarm	0cmH2O-20cmH2O
High minute volume alarm	1L/min-20L/min
Low minute volume alarm	0L/min-10L/min
Continuous pressure alarm	(PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	＜12.5 kPa
Fan error	Show on screen
Oxygen deficit	Show on screen

Working condition
Gas Source	O2
Pressure	280kPa-600kPa
Voltage	100-240V
Power Frequency	50/60Hz

DM6B Four Casters Veterinary Anesthesia Scavenger System 0-60L/Min
